Add a Saw

Purpose

Use saws to cut lumber for trusses.

Prerequisites

A default station scheme and saw must be set up during installation.

Steps

To add a saw:

1. From the main CS Director window, select Tools.
2. Click Saws/Tables.

• Click to add a new saw. The new saw displays below the existing saws.

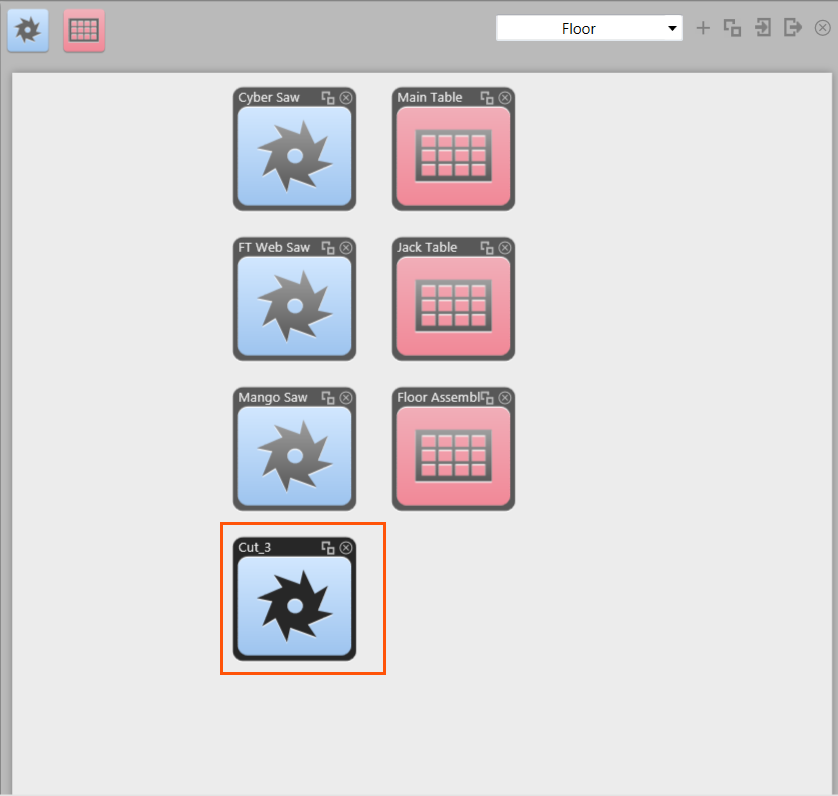

Saws display in descending order, from top to bottom. For example, in the figure above, the new saw labeled with a default name displays at the bottom.

4. After the saw is created, click and drag it to the order in which you want.
5. Click the new saw to name.
6. In the Station Settings section, select the attributes for the new saw. For details, see:

• Saw Station Settings: Board Properties and Bevels

• Saw Station Settings: File Settings
• Saw Station Settings: Piece Count Properties, Piece Types, and Piece Label Options
• Saw Station Settings: Product Type and Cut Type Properties
• Saw Station Settings: Saw Properties

7. Click Close.
