Move Components

Purpose

Components are arranged within groups in the order in which they should be produced. You can adjust which group a component is in and in what order the components are listed/organized. Components can be moved within a group and moved to alternate groups.

Prerequisites

Before moving components, be sure the following items are finished.

  • Components must exist within the project.
  • When moving components from one group to another, more than one group must exist.

Steps



Watch video

To move components:

1.  In the Project List window, select a project.

2.  Click Components.

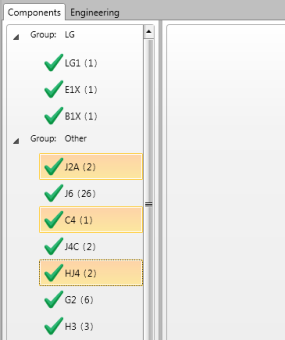

3.  Select one or more components to be moved. Use CTRL or SHIFT to select multiple components simultaneously.

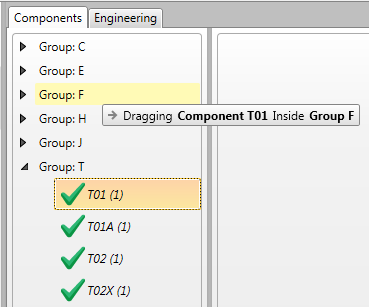

4.  After selecting the components, click and hold, then drag the selected components to the desired location. A tool tip indicates if the component is dropped above or below the current item.

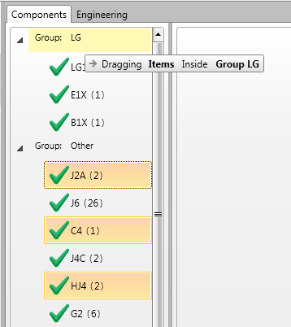

Items can be moved to another group and either inserted above or below existing item or positioned at the top of the list by dropping the selected items on the group heading.

5.  By default, the components are automatically added to the top of the group.

6.  To:

Move Components To Collapsed Groups

Ability to drag components over collapsed groups without automatically expanding the group; similar to the Plans/Elevation tab.

When a component is dropped into a collapsed group, the component is added to the end of the group’s list.

Move Components To a New Group Using Right Click command

Using the Right Click menu is another way to move components to a new group.

a.  Right Click to select one or more components to be moved.

b.  Select Move Component(s) to New Group.

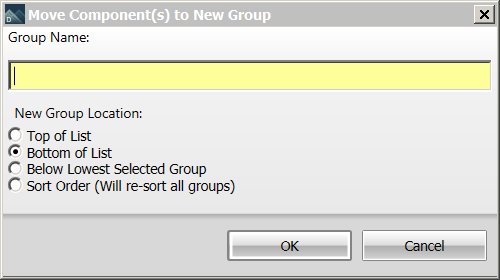

c.  In the Move Component(s) to New Group window, type the Group Name.

d.  Select the New Group Location. For details about the New Group Location options, see New Group .

e.  If you select Bottom of the List and click OK, the components are added to the end of the components list.

Move Components To an Existing Group Using Right Click command

Using the Right Click menu is another way to move components to an existing group.

a.  Right Click to select one or more components to be moved.

b.  Select Move Component(s) to Existing Group.

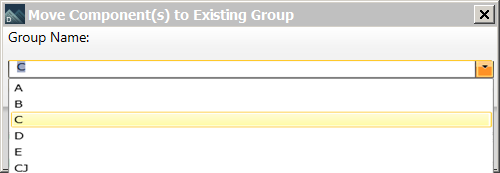

c.  In the Move Component(s) to Existing Group window, select the Group Name.

d.  Click OK and the components are added to the end of the specified group's list.
