Purpose |
Use Find Components to quickly locate a specific component from the components list.
|
|
Prerequisites |
Before finding components, one or more components must exist within the current project.
|
|
Steps |
To find components: 1. Select the Components Tab for a project. 2. Click Find Components.

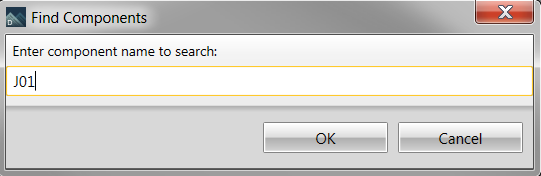

3. Enter the name of the component.
As characters are entered, a drop down list displays component search results. Either select a component from the drop down list or continue to type the name of the component. 4. Click OK. The component is located and highlighted in the components area and the truss profile image is displayed. Components List

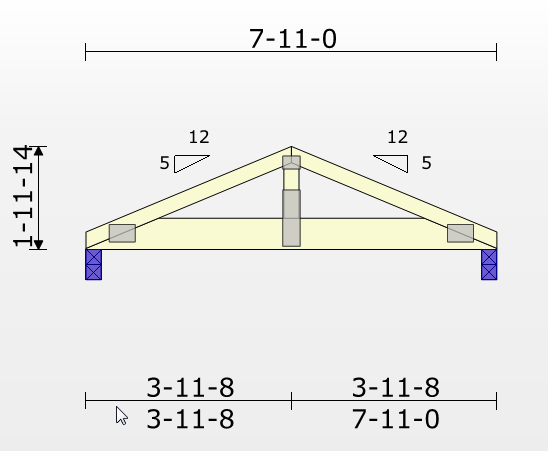

Truss Profile
|
|
