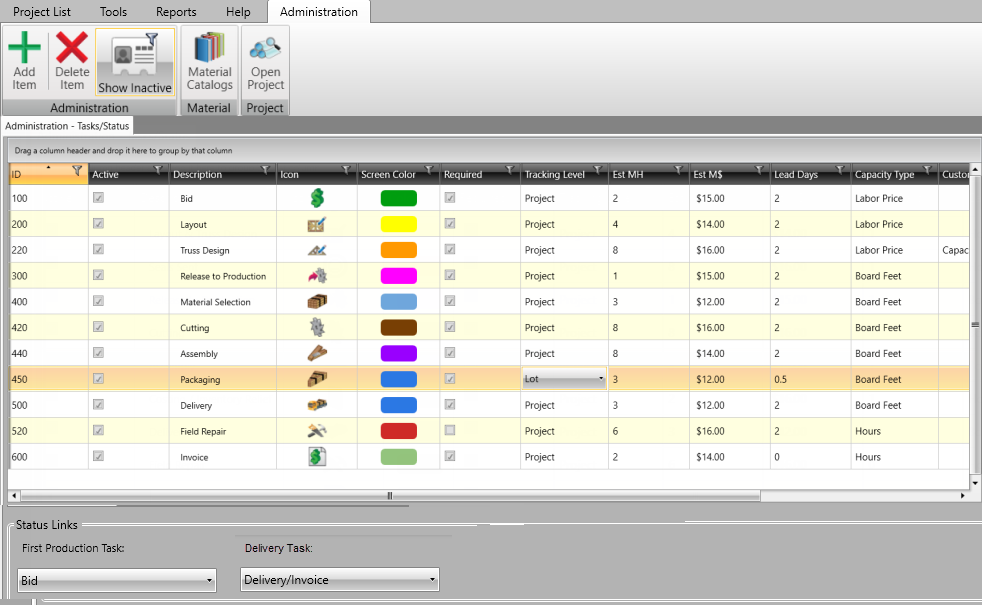

Administration Tasks/Field Descriptions

ID

Assign numbers defining the task sequence in a project.

Active

Select to make a task active.

Description

Task name or type.

Icon

Icon to help identify a task.

Assign any existing icons from the dropdown list to your tasks.

• To add your own icons to the dropdown, add your icon(s) to <Installfolder>/Client/Icons/24x24 (This is usually C:/SST/Client/Icons/24x24)

• Standard size for task icons is 24x24

• Icons are ordered in the dropdown alphabetically (prefix the name with a number or character to change the order)

• The sync process copies newly added icons to the server and then to other clients, so they are available to all users

Color

Any color can be applied to any task. It is recommended that colors are applied strategically to give them some at-a-glance meaning.

Required

Assign which tasks are required as a minimum for each project.

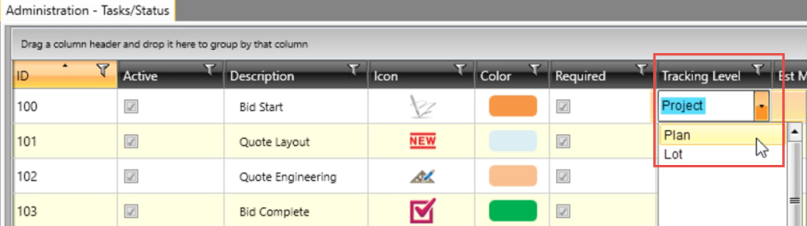

Tracking Level

Level for tracking a task, by Project, Plan, or Lot. See additional Tracking Level information below.

This feature provides the ability to sub-divide a project so that you can track portions of the project at a time.

• Sub-divided Design level work is tracked at the Plan/Elevation level

• Sub-divided Production level work is tracked at the Lot level

Define Tracking Levels

You can define several tracking levels:

Project Level tasks are generally performed only once per project.

• If a task is repeated in a given project, another instance may be manually added

Plan Level tasks are design tasks that may be performed more than once per project.

• Multiple sets of Plans may be designed by different designers

• Adding new Plans will automatically add associated tasks

• Sub-divided Design level work is tracked at the Plan/Elevation level.

Lot Level tasks are production tasks that may be performed more than once per project.

• Multiple Lots may be produced in the same project at different times.

• Adding new Lots will automatically add associated tasks

• Sub-divided Production level work is tracked at the Lot level

See Adding/Tracking Plans and Lots.

Est MH

Average man hours to complete a particular task. For details, see Estimated Hours Overview.

Est M$

Cost per man hour to accomplish this task.

Lead Days

Number of days needed to schedule and complete this task.

Capacity Type

Measurement for tracking capacity of tasks on web calendars. Select Capacity Types based on the task level:

Project Level Tasks

• Project level properties include:

  • Board feet (for project components)

  • Estimated BDFT (Project Info > Estimated BDFT)

  • Hours (from the Tasks tab > associated task)

  • Labor Price (for the project’s components)

  • Linear Feet of Lumber (for the project’s components)

  • Linear Feet of Truss Span (for the project’s components)

  • Price with Delivery (sum for all elevations)

• Project Level Numeric Custom Fields

Plan Level Tasks

• Hours (from the Tasks tab > associated task)

• Plan/Elevation Level Numeric Custom Fields

  • The sum from all elevations

Lot Level Tasks

• BDFT (for Lot components)

• LNFT of Span (for Lot components)

• Labor Price (for Lot components)

Custom Display String

Select a custom format for displaying project names for each task on a web calendar. See Create Custom Display Strings for information.

Use this format: [Icon] [Project #]-[Total Bdft]-[Additional fields]

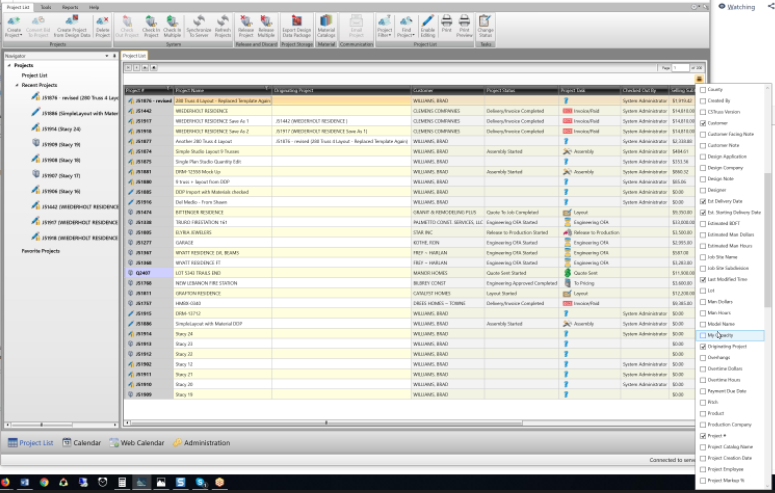

Fields (variables) entered in square brackets must be from the Project List; these will contain the value of the variables specified.

Examples

Items in [ ] refer to fields and items in red denote a custom field.

Delivery Task: [Project #]-[Total Bdft]-[Truck]-[JobSite City]-[LongestTruss]

Production Task: [Project #]-[Total Bdft]-[SawUnits]-[Est Delivery Date]

Email

Identify email addresses to be automatically notified for defined changes in task status

When

Identify the status changes on a task to automatically trigger sending emails

First Production Task

Establish which task is the first task for actual production. Select from the drop down list

Delivery Task

A drop down list of all current tasks that is customizable by the user. Select a task from the drop down list.

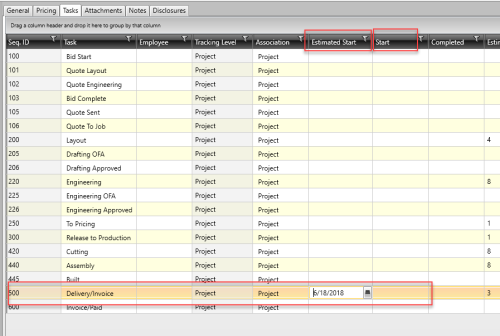

Edits made on the Tasks tab updates the linked Delivery task information. This reduces the effort required to set the Delivery values and minimizes mistakes due to dual entry of data.

Edits on the Tasks tab will update the Project List:

Delivery task > Estimated Start Date will update Project List > Estimated Starting Delivery Date

Delivery task > Start Date will update Project List > Starting Delivery Date
