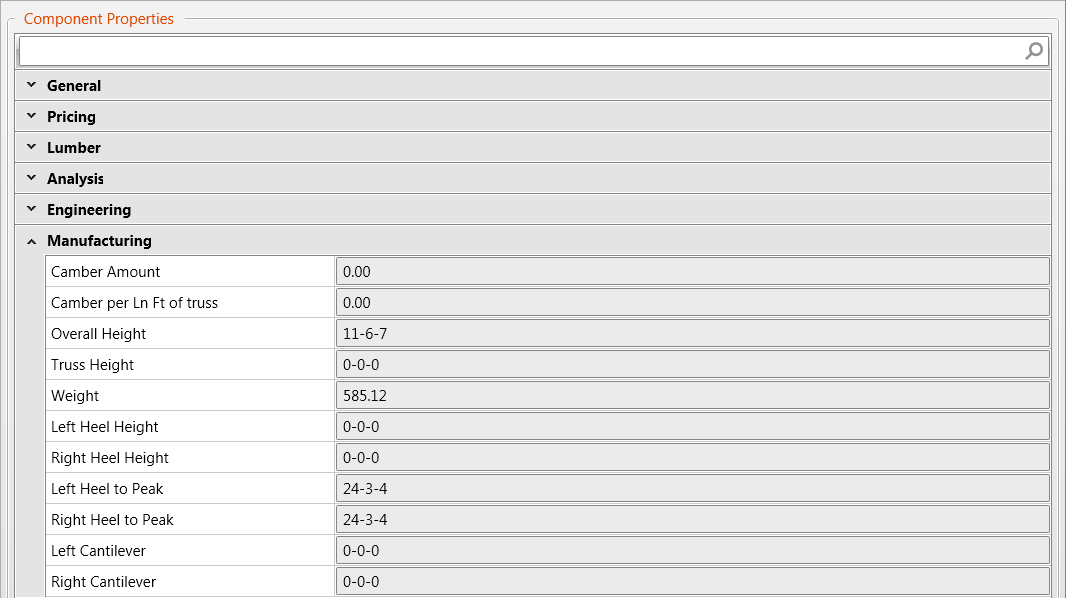

Component Properties Manufacturing Section

Search field. Enter a full or partial description in this field and any component properties fields that match the search criteria display.

Camber Amount

Upward vertical bend in the bottom chord of a truss which compensates for deflection due to different loading conditions.

Camber per Ln Ft of truss

Camber per linear foot.

Overall Height

Vertical height from the lowest point of the truss (including overhangs) to the top of the highest top chord. Displays on pricing and delivery reports.

Truss Height

Vertical height from the bottom of the lowest bottom chord to the top of the highest top chord. Displays on production reports.

Weight

Weight of the truss.

Left Heel Height

Heel height for the left side of the selected truss.

Right Heel Height

Heel height for the right side of the selected truss.

Left Heel to Peak

Distance from the top of the left heel to the highest pitch break point.

Right Heel to Peak

Distance from the top of the right heel to the highest pitch break point.

Left Cantilever

Cantilever distance for the left side of the selected truss. Does not include the overhang if present.

Right Cantilever

Cantilever distance for the right side of the selected truss. Does not include the overhang if present.
