Summary
Use the Component Properties Lumber Section to view lumber details for the selected component.
Window

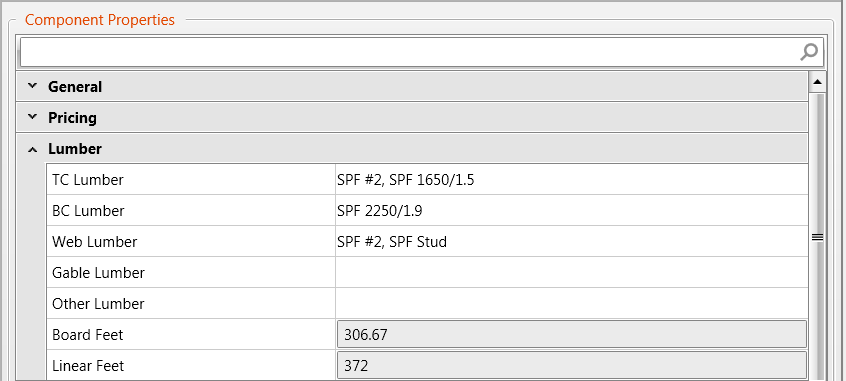

Component Properties Lumber Section
Fields that display as grayed out are read only and fields that display as white are editable.
Field Descriptions
|
Field |
Description |
|
Search field. Enter a full or partial description in this field and any component properties fields that match the search criteria display. |
|
TC Lumber |
Species and grade of lumber used in the top chord of the truss. |
|
BC Lumber |
Species and grade of lumber used in the bottom chord of the truss. |
|
Web Lumber |
Species and grade of lumber used for the webs of the truss. |
|
Gable Lumber |
Species and grade of lumber used in the vertical webs of a gable truss. |
|
Other Lumber |
Species and grade for other types of lumber used in the truss. |
|
Board Feet |
Total board feet of lumber used in the truss. The unit of measurement is represented by a board 1 foot long, 1 foot wide, and 1 foot thick. |
|
Linear Feet |
Total of truss linear feet. |
Accessing the Tab
1. In the Project View, select Components.
2. View the Lumber information for a component.
