Table Station Settings: Table Properties, Truss Dimensions, Quantity

Summary

Open the Preset Manager > Saws/Tables window to set up and revise table station settings for table properties, truss dimensions, and quantity.

Window

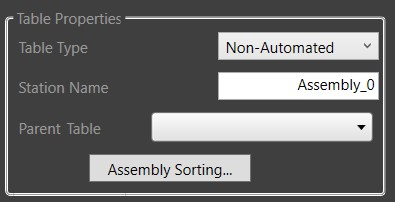

Table Properties

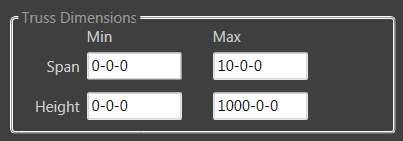

truss Dimensions

Quantity

Field Descriptions

The following table lists field descriptions.

Section/Field	Description
Table Properties
Table Type	Select the type of table from the drop down list. Table type specifies the automatic or manual format for the table.
Station Name	User defined name for a table.
Parent Table	This option is available for any automated table selected. Assembly sorting is functional for the child table independent of the parent table. Truss Dimension section is grayed out for the child table. Offset section is functional for the child table. Quantity section is functional for the child table. Define a parent table by selecting another table in the Parent Table drop down list. This lets you duplicate the output criteria of the parent table to an additional format. For example, when a Parent Table is overloaded, work can be easily distributed to the Child Table since the output file already exists.
Assembly Sorting button	This option is available for any automated table selected. The Parent Table and Child Table can have different Assembly Sorting options.
Truss Dimensions
Span, Min	Minimum span for a truss to be built at this table.
Span, Max	Maximum span for a truss to be built at this table.
Height, Min	Minimum height for a truss to be built at this table.
Height, Max	Maximum height for a truss to be built at this table.
Quantity
Min	Minimum number of trusses to be built at this table.
Max	Maximum number of trusses to be built at this table.

Accessing

1. In the main Project List window, select Tools.

2. Select Saws/Tables.

3. In the Preset Manager, click to add a new table or click to revise an existing table.

4. Revise the Table Properties, Truss Dimensions, and/or Quantity information.

5. Click Close.
