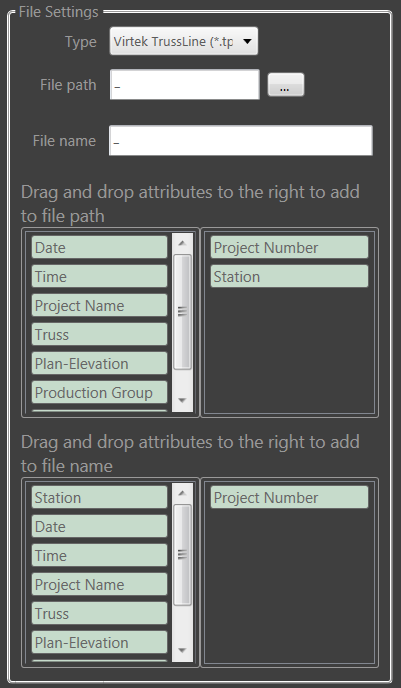

Table Station Settings: File Settings

Type

Select the type of table. For example, *.tps for Virtek TrussLine table. The table type is linked to the selected Table Type assigned in the Table Properties.

File Path

Select the path for where the file is saved. File path attributes automatically create a folder, if one does not exist for depositing the truss files.

Drag and drop attributes to the right to add to file path

Select attributes to add to the file path. The number of table files produced during a batch are determined by the table file attributes.

• Date
• Lot
• Plan-Elevation
• Production Group
• Project Name
• Project Number
• Station
• Time
• Truss

File Name

Name of table file.

Drag and drop attributes to the right to add to file name

Select attributes to add to the file name. This lets you add more information to the file name. Adding more attributes also creates more files:

• Date
• Lot
• Plan-Elevation
• Production Group
• Project Name
• Project Number
• Station
• Time
• Truss
