Toggle Banding

Purpose

Use Toggle Banding to add or remove banding.

Prerequisites

A stack set must exist.

Steps

To add banding:

1.  In the Project List window, select a project.

2.  Click Plans/Elevations.

3.  Select at a Plan and Elevation.

4.  Click Toggle Banding.

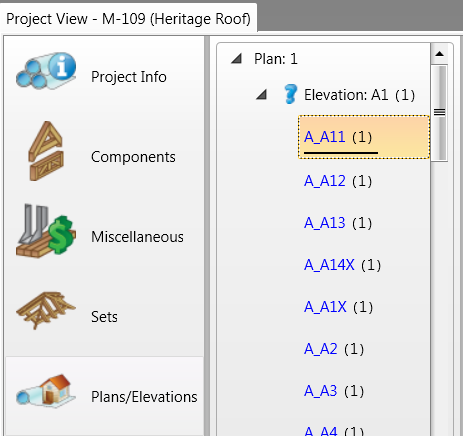

5.  The Elevation displays with a line under the item that has added banding.

6.  To remove the banding, click Toggle Banding and the line is removed.

Edit Banding Note

To add a note to a truss:

1.  Right-click on a truss with a banding indicator.

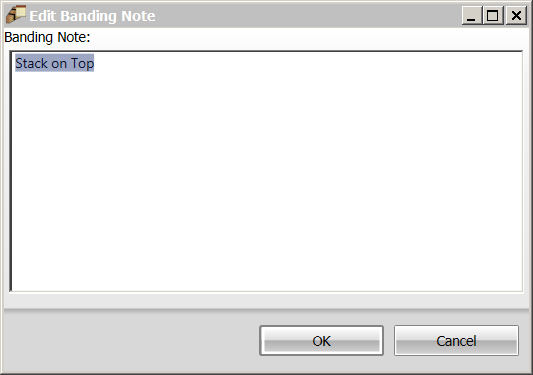

2.  Click Edit Banding Note.

3.  Enter the Banding Note.

4.  The banding indicator changes from a solid line to a dashed line when there is an associated banding note.

5.  When hovering over a component with an associated banding note, the Banding Note displays in the tool tip.

When components with banding indicators are moved on the elevation Stacking List, banding indicators are removed . This also removes the Banding Note. For Best Practices, the stacking order should be finalized before the banding is applied.
