Select Hangers

Purpose

Use Select Hangers to browse a database of Simpson Strong-Tie hangers to add as miscellaneous materials to the catalog.

This database of hangers does not include hold downs or straps. The database is limited to hangers in general.

Prerequisites

An existing catalog must exist.

Steps

To select hangers:

  1. From the main CS Director window, select Project List.
  2. Click Material Catalogs.


  1. Click Selection & Pricing under the Miscellaneous section.



  2. Click to highlight a specific item in the product grid.
  3. Click Select Hangers.

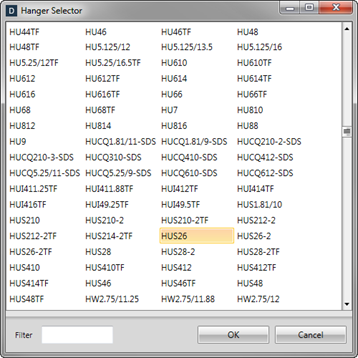

  1. In the Hanger Selector dialog box, scroll though the list of available hangers and click to highlight a specific hanger.

Multiple hangers can be selected by using the CTRL select option.

  1. Use the Filter field to filter the hanger list to a smaller list from which to select hangers. When typing in the Filter field, the list of possible hangers is regenerated based on the characters typed into the field.
  2. Click OK.
