To
import plan:

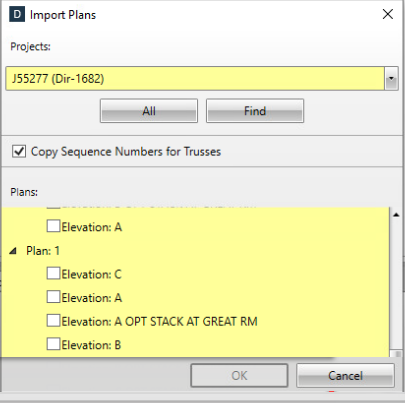

1. Click Import Plans.
2. Select a project.

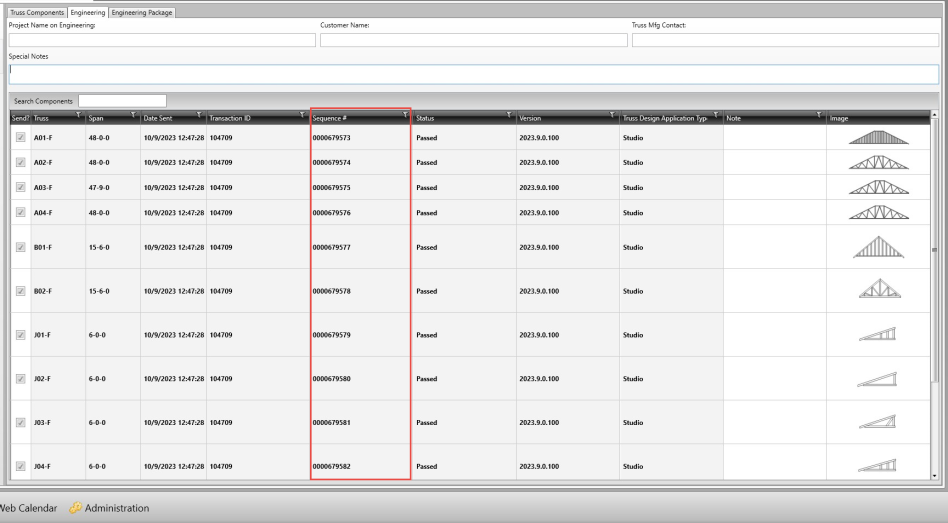

3. Select Copy Sequence Number for Trusses to retain Send Engineering Sequence Numbers for imported trusses approved by engineering. A sample is shown below.
Note that sequence numbers display only after trusses are sent to Engineering.
4. Select the plan/elevation. The ability to select an individual plan/elevation is useful if an order changes and requires a new or updated version of a plan/elevation due to a design or customer change.
5. Click OK.
The newly imported plan displays at the bottom
of the Plan/Elevation tree.
|
