Import From Layout

Purpose

Import objects from Truss Studio Layout, including trusses, sets, stacking lists, and banding.

Prerequisites

Trusses, sets, stacking lists, and banding in Truss Studio Layout.

Steps

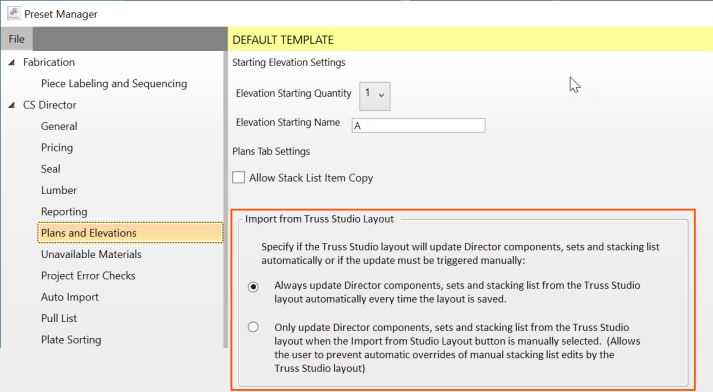

  1. Go to Preset Manager > CS Director > Plans and Elevations.
  2. Set the preset for Import from Truss Studio Layout. You can choose the automatic or manual option.

If you select the manual option, Director components, sets, and stacking lists are updated only when you click the Import from Truss Studio Layout button. See Plans & Elevations Commands.
