Check for Obsolete Plates

Purpose

Check for obsolete plates in material catalogs and projects.

Prerequisites

A material catalog must exist.

Steps

To check for obsolete plates:

  1. From the main CS Director window, select Project List.
  2. Click Material Catalogs.

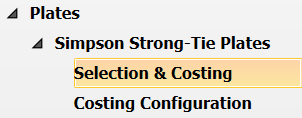

  1. Select Selection & Costing under the Plates section.

    The Material Catalog Setup toolbar displays.

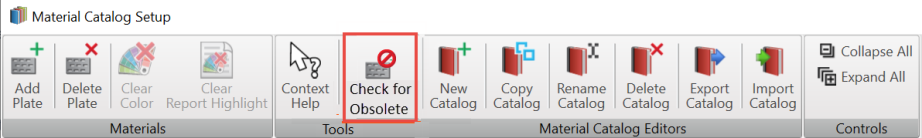

  2. Click Check for Obsolete.

A list of obsolete plates displays.

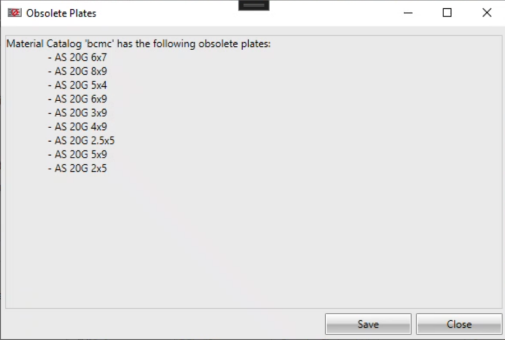

A list of obsolete plates in a Material Catalog.

If obsolete plates are found:

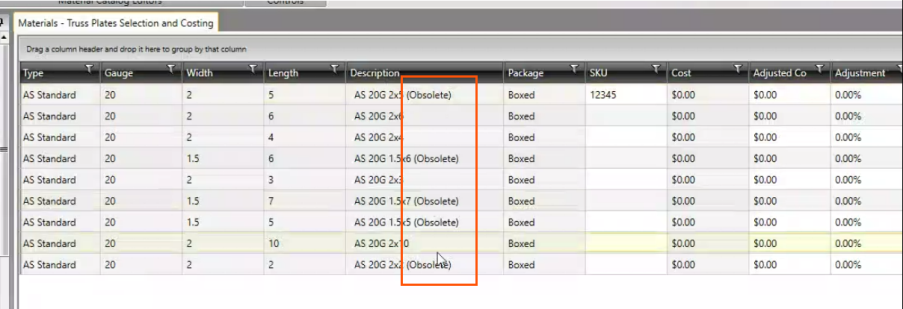

  • Projects: These plates are still valid in projects as long as there is existing inventory to support production.

  • Material Catalogs: The plates should be considered for removal from the Material Catalog, based on existing inventory. You will not be able to order more of these plates from Simpson.

Auto-Check for Obsolete Plates

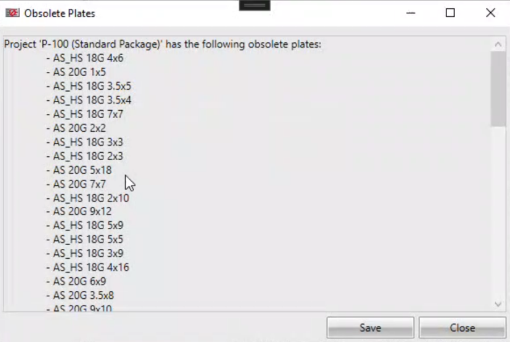

Enabling this setting displays a warning about obsolete plates every time you open a material catalog/project:

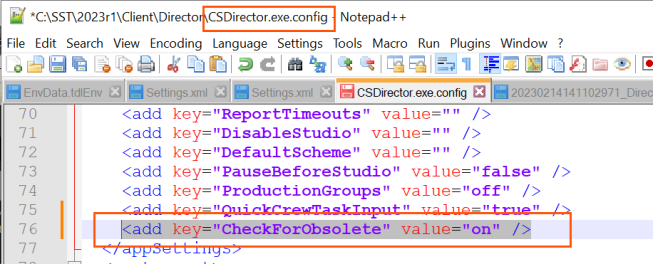

The auto-check process for obsolete plates can be turned on/off with the following setting in CSDirector.exe.config:

  • Install folder > Client > Director > CSDirector.exe.config

  • <add key="CheckForObsolete" value="on" />

20 Gauge

  • 1x2

  • 1x5

  • 1.5x5

  • 1.5x6

  • 1.5x7

  • 1.5x8

  • 2x2

  • 2x5

  • 2.5x3

  • 2.5x5

  • 2.5x7

  • 2.5x8

  • 3x9

  • 3x14

  • 3x16

  • 3.5x4

  • 3.5x5

  • 3.5x6

  • 3.5x8

  • 4x3

  • 4x9

  • 4x18

  • 5x4

  • 5x9

  • 5x18

  • 5x20

  • 6x7

  • 6x9

  • 7x7

  • 7x9

  • 8x9

  • 9x10

  • 9x12

18 Gauge

  • 1.5x12

  • 2x3

  • 2x10

  • 2.5x6

  • 3x3

  • 3x4

  • 3x5

  • 3x7

  • 3x9

  • 3.5x4

  • 3.5x5

  • 3.5x6

  • 4x4

  • 4x5

  • 4x6

  • 4x7

  • 4x9

  • 4x14

  • 4x16

  • 4x18

  • X5x

  • 5x6

  • 5x7

  • 5x9

  • 6x6

  • 6x7

  • 6x9

  • 7x7

  • 7x18

  • 7x20

  • 8x9
