Define Dimension Format Settings

Purpose

 These settings allow you to define the dimension format on your layout and in printed output. Beginning in 2024.7 Layout recognizes user-defined dimensions in ff-ii-ss format and converts them to Metric units; this includes edited dimensions that are still in the ff-ii-ss format. If the text is not in ff-ii-ss format, the text is displayed as is, with no conversion.

Steps



Watch video

1. On an open layout, click EnvData.

The EnvData window displays.

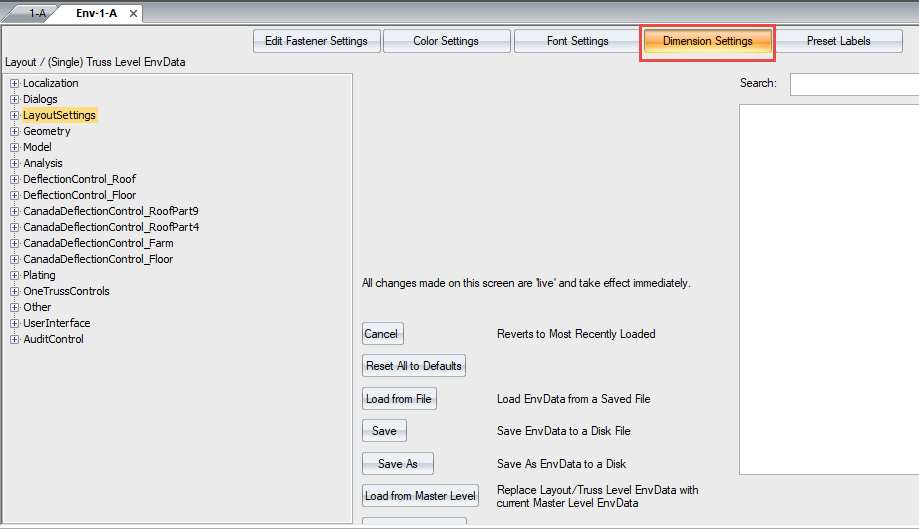

2. Click Dimension Settings.

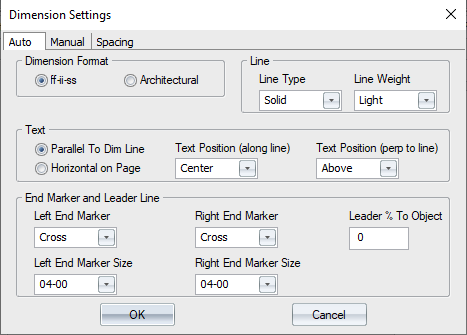

The Dimension Settings dialog displays.

There are three tabs on the dialog:

  • Auto dimensions include all dimensions that are automatically generated. They include dimensions that are auto attached to walls, cantilevers, and overhangs.

  • Manual dimensions are manually created using the Quick Dimensions, Dimensions, and Dimension Objects commands.

  • Spacing dimensions are created using the Spacing Dimensions command.

Each tab contains the following settings:

  • Dimension Format offers two options for the dimensions on-screen and in print:

    • ff-ii-ss - display dimensions as feet-inches-sixteenths, for example, 11-7-8.

    • Architectural - display dimensions as feet-inches-fractions, for example, 11'-7 1/2".

  • Line Type/Line Weight: Line Type options include Solid, Dashed, Dotted, and None. Line Weight options include Light, Medium, and Bold; the default is medium.

  • Text

    • Parallel to Dim Line: Click to place text parallel to the dimension line.

    • Horizontal on Page: Click to place text horizontally on the page.

    • Text Position (along line): Select Center, LeftOutside, LeftInside, RightOutside, or RightInside.

    • Text (perp to line): Select Above, Inline (centers text), or Below.

  • End Marker and Leader Line

    • Left End Marker: Select ArrowIn, ArrowOut, Cross, None, Tick, TickTop, or TickBottom.

    • Right End Marker: Select ArrowIn, ArrowOut, Cross, None, Tick, TickTop, or TickBottom.

    • Leader % to Object: Adjusts the length of the dimension leader line in relationship to the dimensioned object. An example is shown below. The default is 0.

      At 50

    • Left End/Right End Marker Size: Select a size for the marker end from the dropdown list.

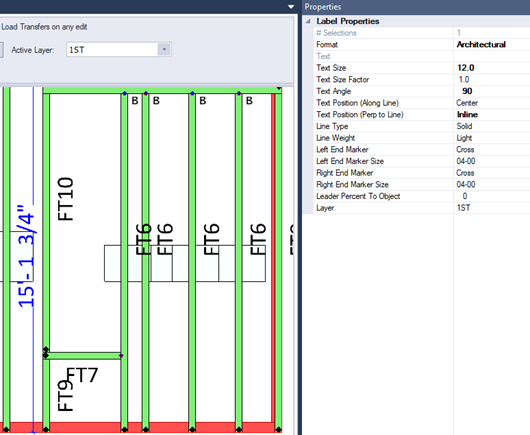

These dimension settings are also editable in the Properties grid.
