Summary
Use Plate Selection & Costing to define the specific connector plates and pricing used for truss design for the current material catalog.

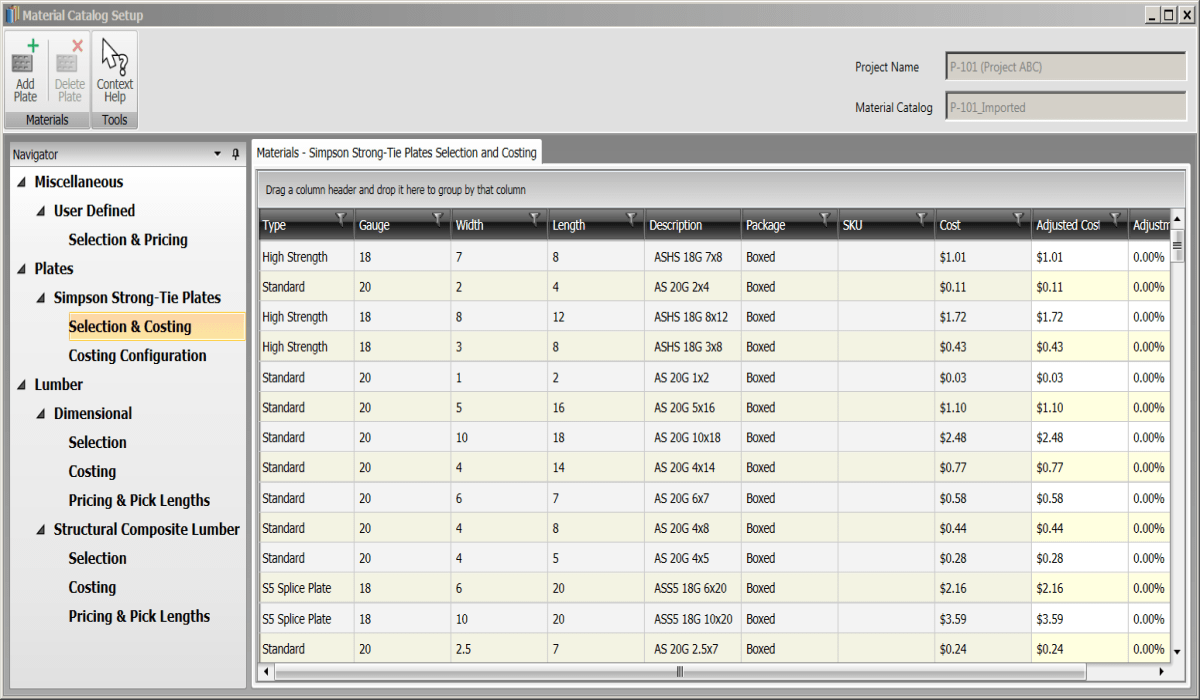

Window
Material - Simpson Strong-Tie Plates Selection & Costing
Field Descriptions
The following table lists field descriptions.
|
Section/Field |
Description |
|
Type |
Standard, High Strength, S5 Splice Plate, or S6 Splice Plate. |
|
Gauge |
Thickness of the plate. |
|
Width |
Width of the plate. |
|
Length |
Length of the plate. |
|
Description |
Combined information of the plate, the manufacturer and dimensions in a short description. |
|
Package |
Form in which the material is packaged. |
|
SKU |
Designated number for the item. |
|
Cost |
Purchase price from Simpson Strong-Tie. The cost displays in the Project Info > Pricing tab > Components grid > Plates column. For details, see Pricing Tab commands |
|
Adjusted Cost |
Resulting cost adjustment based on the applied adjustment percentage. |
|
Adjustment% |
Adjustment factor applied to the Cost determining the Adjusted Cost. |
Accessing
1. In the Navigator panel, select Projects.
2. To display a list of projects in the Project List window, select Project List, Recent Projects , or Favorite Projects .
3. Select Material Catalog Setup.
4. Select Plates > Simpson Strong-Tie Plates> Selection & Pricing.
