Summary
Lumber costing is defined on this window.
Window

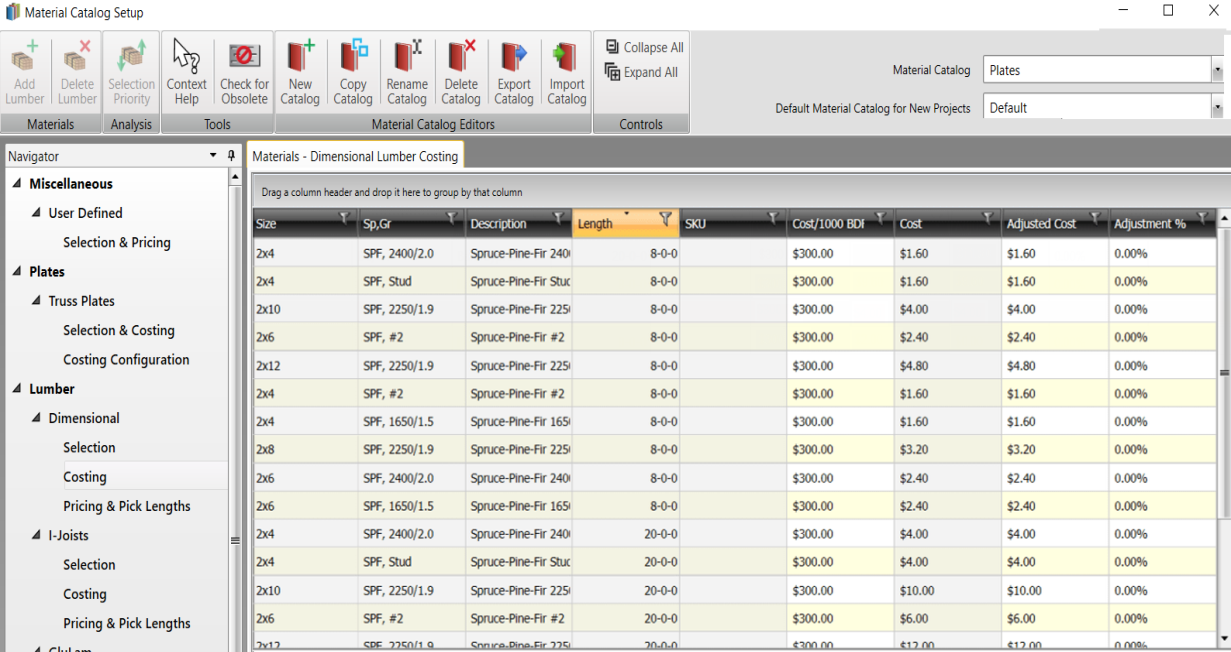

Materials - Dimensional Lumber Costing
Field Descriptions
|
Section/Field |
Description |
|
Size |
The width and length of lumber. |
|
Sp,Gr |
Abbreviation for species and grade of lumber. |
|
Description |
Expanded description of the species, grade, and size of lumber. |
|
Length |
Total length of lumber. |
|
SKU |
Stock Keeping Unit (designated by your company), which allows for tracking lumber in inventory. |
|
Cost/1000 BDFT |
Cost of lumber for every 1000 board feet. The cost displays in the Project Info > Pricing tab > Components grid > Lumber column. For details, see Pricing Tab commands |
|
Cost |
Cost of specific line item of lumber by board feet. |
|
Adjusted Cost |
Cost based on the Adjustment percentage. |
|
Adjustment % |
Percent to adjust the cost of the specific line item of lumber. |
Accessing
1. In the Navigator panel, select Projects.
2. Select Project List, Recent Projects or Favorite Projects to display a list of projects in the Project List window.
3. Select Material Catalogs.
4. Select Lumber > Dimensional > Costing.
The Materials - Dimensional Lumber Costing window displays.
