Summary
Costing Configuration is used to set the plate cost per pound for each plate type. The cost per pound is applied to the individual plate entries defined in the Selection & Pricing tab for the current Material Catalog.

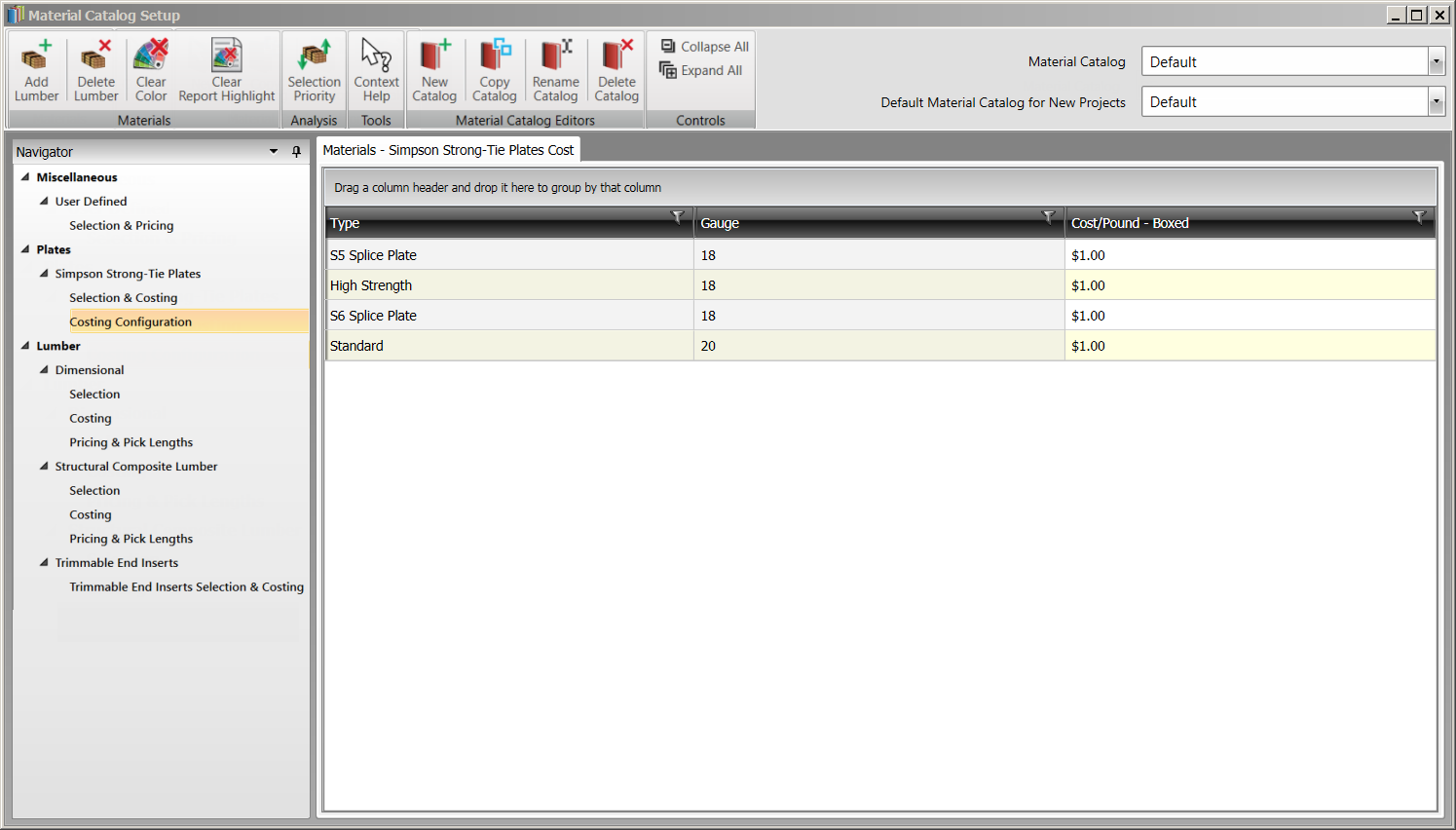

Window
Material - Simpson Strong-Tie Plates Cost
Field Descriptions
The following table lists field descriptions.
|
Section/Field |
Description |
|
Type |
Standard, High Strength, S5 Splice Plate, and S6 Splice Plates |
|
Gauge |
Thickness of the plate. |
|
Cost/Pound - Boxed |
Cost per pound for the corresponding plate type. |
Accessing
1. In the Navigator panel, select Projects.
2. To display a list of projects in the Project List window, select Project List, Recent Projects , or Favorite Projects .
3. Select Material Catalog Setup.
4. Select Plates > Simpson Strong-Tie Plates> Costing Configuration.
